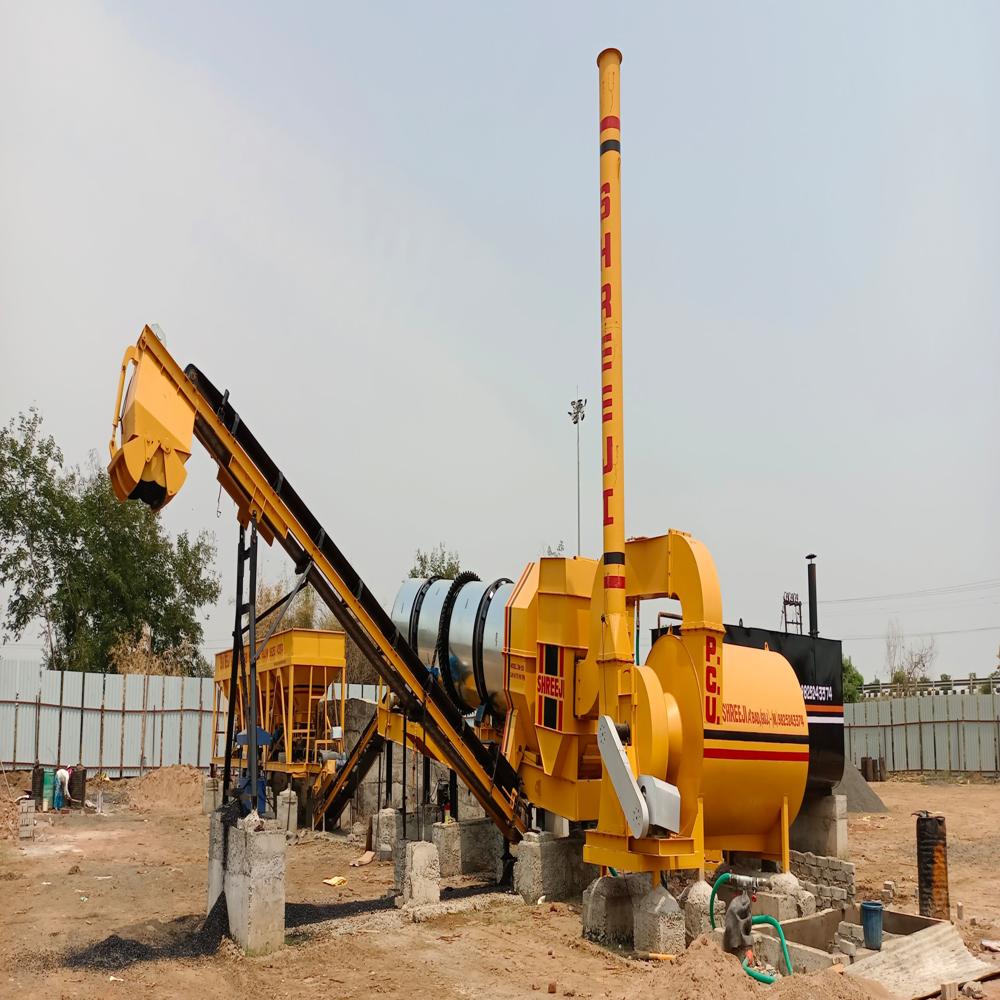

Bitumen Hot Mix Plant
425000 INR/Set
Product Details:
- Lifting Height Up to 10 meters
- Surface Paint Coated
- Motor Power 25 HP
- Lifting Speed 5-10 m/min
- Product Type Bitumen Hot Mix Plant
- General Use Construction
- Material Mild Steel
- Click to View more
X
Bitumen Hot Mix Plant Price And Quantity
- 2950000.00 - 4850000.00 INR/Set
- 425000 INR/Set
- 1 , , Set
Bitumen Hot Mix Plant Product Specifications
- Hot Mix Plant
- 415 V
- Up to 10 meters
- No
- Yellow / Green
- 25 HP
- Panel Board Controlled
- Paint Coated
- Yes
- 40-60 TPH
- 9000 x 2500 x 3500 mm
- Bitumen Hot Mix Plant
- Air Cooling
- Batch Mix
- Construction
- 5-10 m/min
- Approx. 12000 kg
- Durable and Efficient
- Mild Steel
- 6-8 Ltr/Ton Mix
- 120C to 165C
- Automatic Diesel Burner
- 500 mm
- 2-3 Days
- 1500 mm
- Vibratory Motor Fitted Hopper
- Twin Shaft
- Low Maintenance Required
- Emergency Stop Push Button
- Compliant with CPCB Norms
- 4
- Portable with Wheels
- Wet Scrubber
- Bitumen Storage Tank Available
Bitumen Hot Mix Plant Trade Information
- Telegraphic Transfer (T/T), Cash in Advance (CID), Cash Advance (CA)
- 5-6 , , Set Per Month
- 45 Days
- Australia, South America, Western Europe, Middle East, Africa, Central America, Asia, Eastern Europe, North America
- All India
Product Description
Backed by ultra-modern machining unit and ingenious professionals, we are eagerly involved in presenting the best quality Bitumen Hot Mix Plant to valued patrons. This kind of plant is extensively utilized in many different construction projects or sites for mixing bitumen in a perfect ratio. Made from top-grade metal parts & components with progressive technology, the Bitumen Hot Mix Plant is easy to install, simple to operate, rust proof, convenient to clean, durable, and can be bought in various capacities, sizes, and technical specifications.
Specification
| Brand | SHREEJI SONIC |
| Capacity | 20 TO 240 TPH |
| Driven Type | AUTOMATIC |
| Usage/Application | ROAD CONSTRUCTION |
| No Of Bins Total Storage | 4 |
| Automation Grade | Automatic |
| Conveyor Belt Feeding | YES |
Efficient Batch Mixing Technology
The Bitumen Hot Mix Plant utilizes a twin shaft batch mix process, ensuring all materials are blended thoroughly for consistent quality. This mixing technique, coupled with an automatic diesel burner, delivers precision in every batch, enhancing durability and performance for infrastructure projects.
Portability and Rapid Installation
Mounted on a sturdy traveling chassis with wheels, this hot mix plant is fully portable, enabling quick relocation and setup at different sites. With a typical installation time of just 2-3 days, it provides unmatched flexibility and rapid deployment in varying project locations.
Eco-Friendly and Compliant Operation
Fitted with a wet scrubber as its dust collection system, the plant minimizes emissions, aligning with the latest CPCB standards in India. Its fuel-efficient operation and modern controls ensure an environmentally responsible solution without sacrificing productivity.
FAQ's of Bitumen Hot Mix Plant:
Q: How is the Bitumen Hot Mix Plant installed and how long does it take?
A: The Bitumen Hot Mix Plant features a portable design with a traveling chassis and wheels, making it easy to install at various project locations. Typically, installation is completed within 2 to 3 days, ensuring minimal downtime before commencing operations.Q: What is the primary process of producing hot mix in this plant?
A: The plant uses a batch mix method with a twin shaft mixer, where aggregates and bitumen are blended at controlled temperatures (120C to 165C). Aggregates are fed via vibratory hopper and mixed uniformly to produce consistent quality mixes for road construction and maintenance.Q: Where can this hot mix plant be used most effectively?
A: This plant is suitable for construction projects requiring bituminous mixes, such as highways, rural roads, and urban infrastructure. Its portable nature allows for easy relocation between different job sites, making it efficient for contractors working across multiple regions in India.Q: What safety features are included in the equipment?
A: To ensure operator safety, the plant is equipped with an emergency stop push button and a panel board-controlled system. These features enable quick shutdown and reliable control, reducing the risk of accidents during operation.Q: How does the plant meet environmental emission standards?
A: The built-in wet scrubber dust collection system captures particulate matter, ensuring emissions comply with CPCB (Central Pollution Control Board) norms. This makes the plant both efficient and environmentally responsible.Q: What are the benefits of using the automatic diesel burner?
A: The automatic diesel burner ensures optimal fuel consumption (6-8 liters per ton of mix) and precise temperature control. This not only reduces operational costs but also enhances the efficiency and uniformity of the final bituminous mix.Q: When would it be beneficial to use the optional bitumen storage tank?
A: The optional bitumen storage tank is useful for projects requiring continuous production or large volumes of hot mix. It allows for uninterrupted supply of bitumen to the mixer, streamlining workflow and improving productivity on large-scale construction sites.Tell us about your requirement
